Ground Screw Foundation For Biohort Garden Sheds

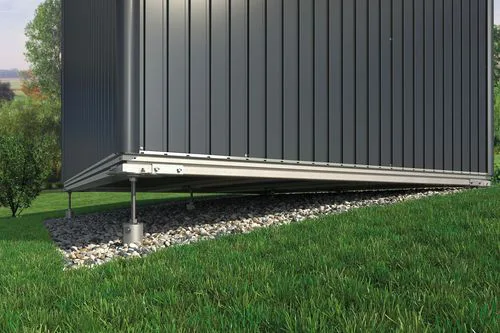

The Ground Screw Foundation can be easily installed and the assembly of your garden shed can immediately follow. The innovative base consists of high-grade aluminium panels fitted in a robust frame mounted onto stable ground screws. Additional adapters allow compensation for uneven ground and slope angles. An integrated water barrier solves drainage problems perfectly and ensures no water enters the shed. Ground Screw Foundation is a perfect fit for all Biohort Garden Sheds and Equipment Locker.
A) High grade aluminium panels top quality and weatherproof
B) Special designed foundation frame constructed from aluminium
C) Ground screws ensure stability and storm protection
Features
- Quick assembly
- Ideally suited for uneven surfaces and slopes of up to 10%
- Suitable for installation on all load bearing soil types
- Little excavation required, no gravel frost buffer, no concreting
- Allows optimal alignment and security against the strongest storms (150 km/h, Wind force 12)
- Easy to remove should the need arise
Checklist for Ground Screw Foundation Site:
- Composition of ground and subsoil (depth: 50 cm)
The ground on-site should have a firm, compressed nature (compact roots, large rocks and stones or buried building material e.g.: concrete will prevent assembly). To check the suitability of ground beyond all doubt, try to drive a 50 cm long steel bar into the ground in several places!
- Allow an additional 50 cm space around the foundation itself for the erection work
- If you use the ground-screw foundation also for your side canopy stayers, pay close attention to the precise, vertical positioning of the screws in the middle of the stayer
Please note that we do not have any Biohort products on display in store. However, they can be ordered here on the website or in store and will be delivered to customer address. Biohort accessories can ONLY be bought when purchasing a shed/storage unit. All orders are delivered directly from the Biohort factory, come flat packed on pallet and require assembly. The price includes a curbside delivery only. Please contact The Outdoor Scene by email or phone if you require further assistance.
