Outdoor Gas Fire Pit Burner – 4 Configurations Available

Designed to be built permanently into the landscaping of your garden, our Gas Firepit Burners are manufactured from stainless steel and come completely ready to be installed into any sort of brick or concrete Firepit to match your garden.

Our built-in burners produce flames in a star pattern, that concentrates the flames towards the center, thus producing a very bright and natural-looking fire. The unit incorporates a push-button piezo ignition system, (batteries or mains power not needed) and a flame failure device that cuts the gas supply if the flames are extinguished for any reason.

The variable gas valve is operated by a solid stainless steel lever, to adjust the flames and heat output.

Four models are available and you may choose your fuel type from Natural Gas or LPG (Propane):

• Round
• Square
• Octagonal
• Rectangular

It comes complete with enough Lava Rock to cover the burner (pit not included). The LPG models also have a 4m hose and clips ready to connect to your gas bottle regulator.

What’s Included:

Built-In Burner Shapes

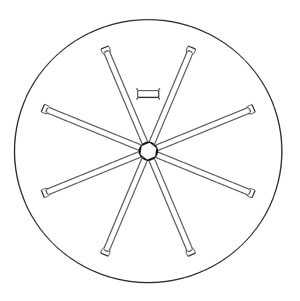

Round

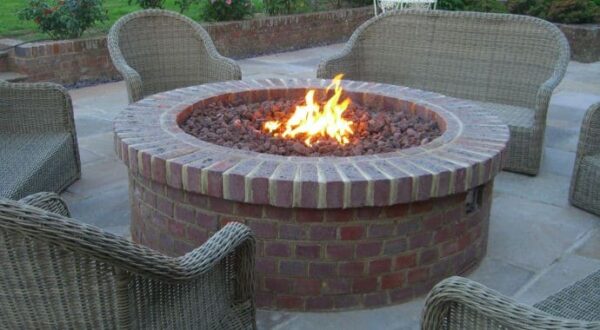

The Round burner measures 60cm in diameter. Usually installed into round firepits, but you could install it into any shape you like.

Octagonal

The Octagonal burner measures 60 x 60cm, usually installed into an octagonal firepit.

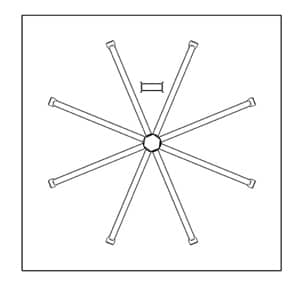

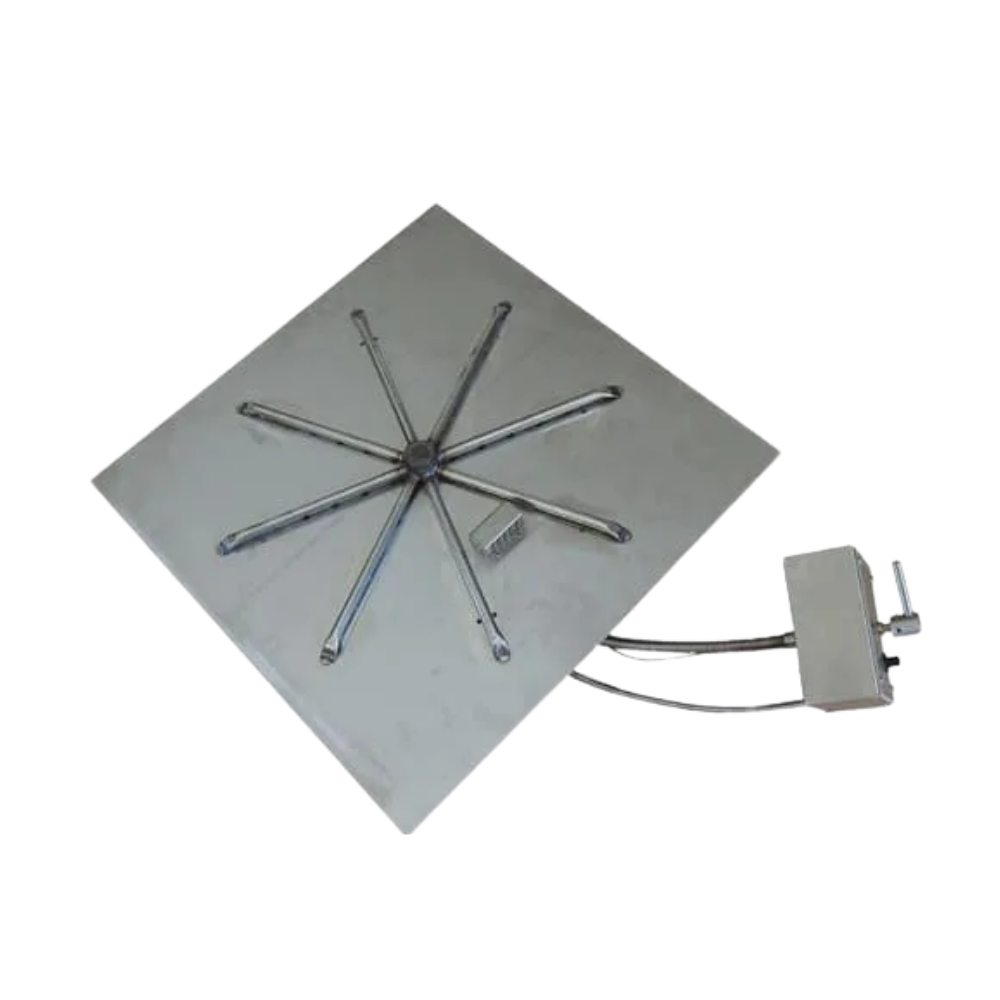

Square

The square burner measures 60 x 60cm. Usually installed into square firepits, but you could install it into a rectangular pit. Many customers have installed two or three square burners in a larger rectangular firepit.

Rectangular

The Rectangular burner measures 100 x 30cm.

Gas Type

• Natural (Mains) Gas
  • You will need an adequate gas supply, to cope with our 18kw burner.
• LPG Propane Gas
  • We recommend Propane LPG (Orange Bottle). Minimum bottle size 19kg.

What’s the difference?

• Heat Output – The Mains gas and LPG gas burners provide the same heat. (18kw).
• Installation – Mains gas needs a pipe run back to the meter, bottled gas pipework can be a lot shorter.
• Convenience – Mains gas, no bottles to run out in the middle of your party.
• Running cost – Bottled gas is more expensive than mains gas.

Standard Connection Length

This is the length of the pipework connecting the burner to its control box. Although these connections are flexible, meaning the control box can be positioned easily in different-sized pits, there is a maximum limit.

The distance from the center of the burner to the front face of the control box measures 575mm. This is ideal for firepits up to 1.2m outside dimension (assuming the control box is slightly recessed back into the brickwork).
